Quality is our Brand
5way Europeon Standard Metal Housing Socket Strips, German Power Distribution Units and Extension Cords
 |
Product Details:
| Place of Origin: | China (Mainland) |
| Brand Name: | SFC |
| Model Number: | SFC-G-5 |
Detailed Product Description

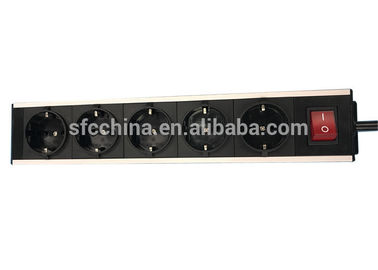

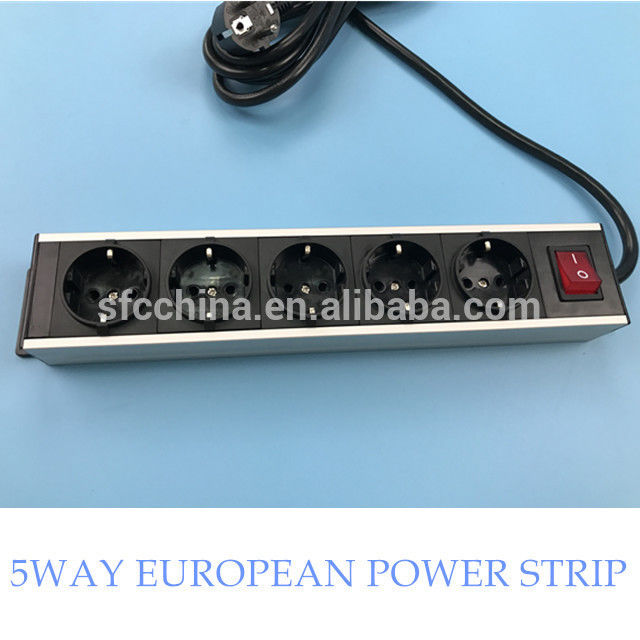

5way Europeon Standard Metal Housing Socket Strips, German Power Distribution Units and Extension Cords
Description
SFC-G-X series power strip offers 16 amp, 250V multi-outlet AC power distribution in a convenient 144mm to 72 inch mountable housing. Offers horizontal or vertical power distribution in rackmount, raceway, laptops cart and workbench applications etc. Includes 1 to 36 output receptacles. 0.5-25m AC line cord with Plug and connector IEC 320 C13 and lighted power switch with circuit breaker and locking transparent cover to prevent accidental shutoff. Sturdy all-metal extruded aluminum housing stands up to demanding network, laboratory or factory environments.
Feature
1. Full aluminum housing indestructible,artistic
2. Heat dispersion
3. High quality copper cable, excellent conductivity, safe and stable
4. Supplying Power up to 4 different devices at same time.
5. Attached Swith with circuit breakers.
Specifications
| OUTPUT | |
| Frequency compatibility | 60 Hz |
| Output watts | 3250W |
| Output volt amp capacity (amps) | 16A |
| Outlet quantity / type | 5 Ways*DIN VDE 0620-1 |
| Outlet spacing | any in. |
| INPUT | |
| Recommended Electrical Service | 16A 250V |
| Input connection type | E&F Type Joint Plug and connector IEC 320 C13 |
| Input plug features | Black or other |
| Input cord length (M.) | 0.5 to 25 |
| Input cord length (in) | 5 to 72 |
| Input cord gauge, type | 1.5mm2*3G |
| Voltage compatibility (VAC) | H05VV-F |
| LAMP ALARMS & SWITCHES | |
| Rock Switches with circuit breaker and lamp | Lighted 2 position switch controls power to all outlets |
| Locking switch cover | Transparent on/off switch cover prevents accidental turn-off |
| PHYSICAL | |
| Unit Dimensions (HWD/mm) | 42*60L |
| Material of construction | Aluminum |
| Mounting accessories included | Includes mounting clips |
| Receptacle Color | Black or other |
| AC line cord color | Black or other |
| Form factors supported | Supports vertical or horizontal mounting in rack enclosures, raceways, laptops cat and a variety of other applications |
| WARRANTY | |
| Product Warranty Period | Lifetime limited warranty |
Note:
1. This Socket is for use in countries and regions with 240-250V
60Hz Only.
2. Max load power is 3250W and please make sure the total consumption does not overload.
3. This product is for indoor use only, do not use it in moist
environment.
4. For your safety, please do not plug the power plug with wet
hands.
5. Please inspect power strip regularly and pull out main plug wall
socket and remove all appliances berfore clean the product.
6. For your safety, the power outlet (Strip) is designed to be
undetachable, so do not force to open the case.
Contact Us
We also custom manufacture for our customers. Please contact us for more details.
